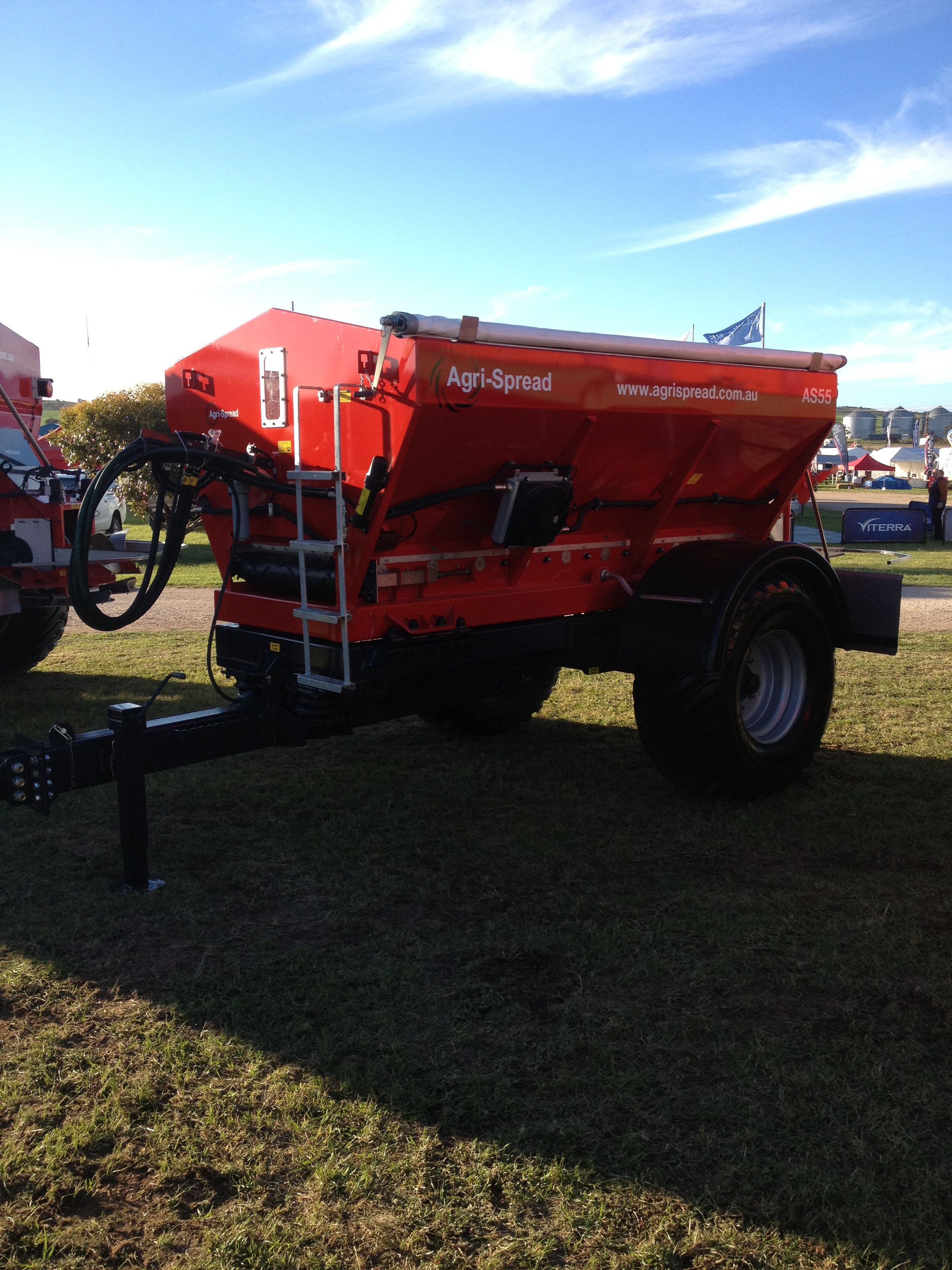

The AgriSpread AS55 is a single axle 5m³ spreader capable of carrying 5 ton of fertiliser or 7 ton of lime sand. Hydraulic control spinners and multiple drop point adjustment ensure an accurate spreading pattern. The AS55 comes standard with the simple and easy to operate ground drive system. Hydraulic drive is optional and combined with compatibility with most GPS systems and load cells ensures even and accurate spreading. The AS55 is durable with the bottom third of the bin, rear spreading deck, fixtures, nuts, bolts and hydraulic fittings all manufactured with stainless steel.
AS55 Fertiliser, Lime, Gypsum & Manure Spreader | Standard Specifications
| MODEL | AS55 |
|---|---|
| Axle Track Width | 2 metre |
| Capacity1 | 5.0m3 |
| Fertiliser Capacity | 5.0 ton |
| Axle | 8 stud |
| Lime Capacity (Level) | 7.0 ton |
| Tyres | 550/60-22.5 (BKT) |
| Bin Width | 2000 mm |
| Loading Height2 (no loads cells) | 2040 mm |
| Loading Height2 (with loads cells) | 2210 mm |
| Bin Length | 3000 mm |
| Rate Controller Type | Land Drive |
| Variable Rate Ready | No |
| 3-Speed Gearbox | Standard |
| Sprung Drawbar | Yes |
| 36m Fertiliser Kit | Yes |
| Hydraulic Brakes | Yes |
| Lights | Yes |
| Roll Over Cover | Yes |
| Tachometer | Yes |
| Feed Plate Adjusters | Yes |
| Chains | Yes |
| Hopper Mesh | Yes (25 or 75 mm opt) |
AS55 Fertiliser, Lime, Gypsum & Manure Spreader | Optional Specifications Table
| MODEL | AS55 |
|---|---|
| Load Cells | Yes |
| In-Cab Border Control | Yes |
| Air Brakes | Yes |
| Hydraulic Drive | Yes |
| Rate Controller | Apollo II |
| Axle Track (All Hyd Drive Only) | N/A |
| Stainless Steel Hopper | Yes |
| Steerable Axle | N/A |
| Tyre Options | Yes |
| TransferTrack | No |
| Hydraulic Folding Curtains | No |
- Capacity 5m3
- 550 / 60-22.5 BKT Flotation Tyres
- 8 Stud Axle
- 2M Axle Track Width
- Sprung Drawbar
- 36m Fertiliser Discs
- Lime, Manure & Gypsum disks
- 25 or 75 mm option Hopper Screen Mesh
- 3 Speed Gearbox Land Drive
- Hydraulic Brakes
- LED Tail Lights
- Roll Tarp
- Tachometer
- High Spec Calibration & Test kit
- Stainless Steel Fittings
- Plastic Mudguards
- Shot blast & two-pack paint treatment
Flotation Tyres give a superior ride and minimise footprint. Available in Trelleborg or BKT tyres .
The Sprung Drawbar is designed to dampen shock energy transfer between the tractor and the Agrispread, ensuring a smoother ride and extending the life of the spreader.
36m Fertiliser Discs are easily interchangeable with the Lime, Manure and Gypsum Discs to maximise accuracy for different products. Spreads Urea to 36m – Independently certified and farmer proven.
Easily Manageable Interchangeable Discs allow for a quick and simple change between applications. Maximising accuracy for different products. Spreads Lime & Gypsum up to 16m.
Hopper Screen Mesh comes standard and keeps large objects away from belts and spinners to maintain a even and precise spread and not cause any damage.
Hydraulic brakes work with the tractors hydraulic braking system giving you control and safety when under load. The machine can be still operated without this feature.
LED Tail lights give indicator safety to the operator and others when transporting or moving machine.
Operated from the back of the machine, the sprung roll tarp is designed to provide a weather proof area for product and keeps the hopper clean when not in use.
Plastic Mudguards help deflect dust and mud from the outside of the hopper and the rear of the spreader, helping to prevent corrosion. The plastic allows for flex to minimise damage if struck.
Agrispread spreaders are shot-blasted and finished with a 2 pack commercial grade paint. The paint is UV resistant and provides a long lasting and durable surface finish.- Load Cells
- Apollo II - Hyd Drive ISOBUS
- Fethers False Door
- Stainless Steel Bin
- Headland Control
- Hydraulic PTO Pump
Load Cells give the Spreader ultimate accuracy and allow for continuous calibration of product.
ISOBUS compatible, the Apollo II system connects to any ISOBUS compatible tractor. This enables the operator to manage setup, calibration and rate control from the Virtual Terminal Display. VRT compatible.
Fitted to the existing Spreader door, the false door provides for the application of very low rates of products like Mouse Off ®  Snail baits and small seeds.
Headland Control reduces coverage at paddock edges by reducing outside spinner speed. Minimises overthrow on first paddock pass and boundaries.AS55
